Lumex Sit And Stand Lift – Safe & Ergonomic Transfers

Lumex sit and stand lift for safe and comfortable patient transfers

Lumex Sit and Stand Lift – Safe, Efficient, and Patient-Engaging Transfers - Image 2

Lumex Sit and Stand Lift – Safe, Efficient, and Patient-Engaging Transfers - Image 3

Lumex Sit and Stand Lift – Safe, Efficient, and Patient-Engaging Transfers

Price range: $2,319.00 through $2,599.00

✔️ 500 lb capacity with heavy-duty frame
✔️ Power or manual base operation options
✔️ Premium LCD controls and hand pendant
✔️ Adjustable knee pad and footplate
✔️ Sling hooks for easy strap placement
✔️ Emergency lowering in power failure

Model

Clear

Optional Slings

Subtotal:

Add-ons total:

Total:

Share with Friends

Description
PRODUCT SPECIFICATION
Shipping & Returns
Product PDF downloads

Description

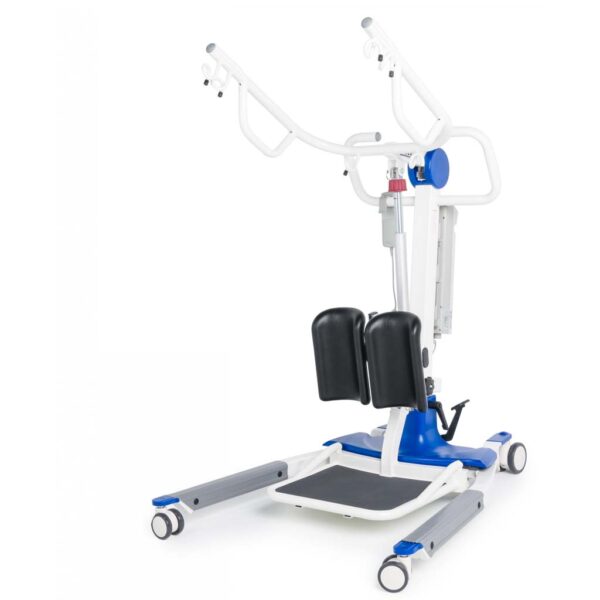

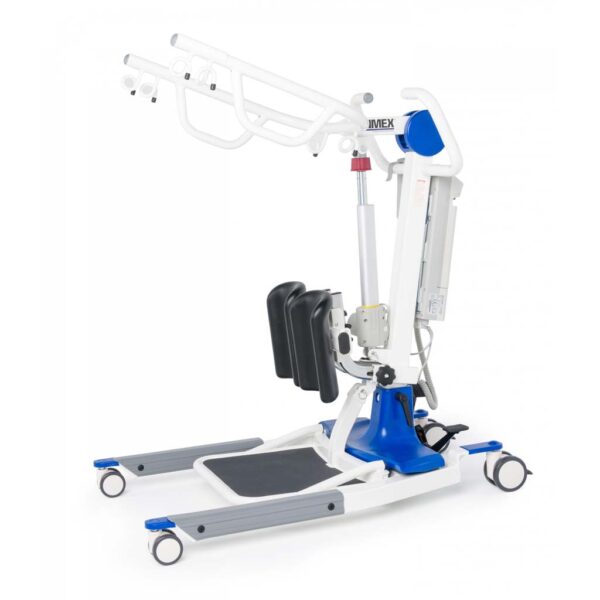

Overview of the Lumex Sit and Stand Lift

The Lumex sit and stand lift is expertly designed for patients who face difficulty standing up independently from a seated position but are able to actively participate in the lifting process and partially support their weight. This lift bridges the gap between full mechanical lifts and manual assistance, offering a safer and more dignified transfer solution that empowers patients while reducing caregiver strain.

Built from heavy-gauge steel and finished with a sleek white powder coat, the Lumex sit and stand lift is not only robust and durable but also designed to protect furniture and walls with rubber-coated low base legs. It is engineered for homecare and clinical environments alike, delivering exceptional safety, comfort, and ease of use.

Advanced Features That Make the Lumex Sit and Stand Lift Exceptional

Heavy Gauge Steel Construction: Ensures maximum durability and long-lasting performance under heavy use.

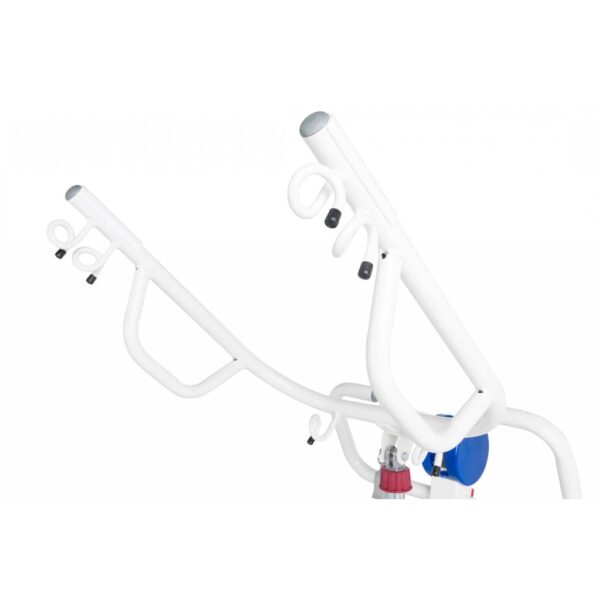

Sling Hooks on Spreader Bar: Facilitate easy and secure placement of sling shoulder straps, improving transfer stability.

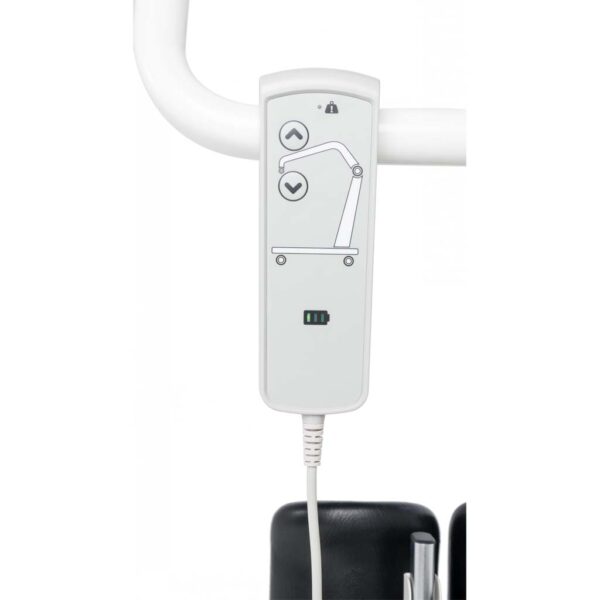

Premium Electronics with LCD Display: Allows operation via a user-friendly control box or ergonomic hand pendant with a hook for convenience.
Power-Assisted High/Low and Base Open/Close: (Available on STS500 model) Simplifies caregiver effort during lifting and positioning.
Manual Base with Intuitive Foot Pedal: (STS500M model) Offers hands-free leg opening for caregivers preferring manual base operation.
Adjustable Knee Pad Unit and Quick-Release Foot Platform: Customize patient support and enable gait training as part of rehabilitation.

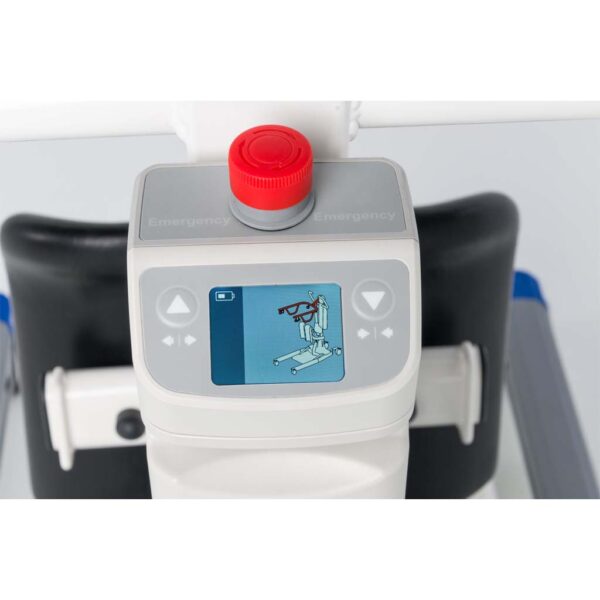

Emergency Safety Features: Includes an easy-access emergency stop button, manual lowering device, and low battery/overload audible and visual alarms.
Smooth and Quiet 24V DC Motor: Provides efficient and noise-minimized operation to reduce patient anxiety and caregiver fatigue.

Optimal Safety and Comfort for Patients and Caregivers

The Lumex sit and stand lift supports a maximum weight capacity of 500 lbs evenly distributed, making it suitable for a broad patient population, including bariatric users. Its adjustable components provide customized comfort, and its padded knee and seat areas ensure patients remain secure and relaxed throughout transfers.

Dimensions and Maneuverability

Base dimensions with a minimum width of approximately 25.6 inches and maximum width near 39.4 inches allow the lift to fit through narrow doorways and tight spaces with ease.
The spreader bar height adjusts from roughly 19.3 inches to 74.8 inches, providing a versatile lifting range for various patient heights and transfer surfaces.
Locking 4-inch front casters and 3-inch rear non-locking casters offer smooth navigation on multiple floor types.

Why Choose the Lumex Sit and Stand Lift?

This sit and stand lift is designed for patients who can actively contribute to their transfers, promoting independence and confidence. It helps reduce caregiver injuries by providing powered or manual assistance tailored to your preference. Whether in a healthcare facility or home environment, the Lumex sit and stand lift offers a reliable, easy-to-use solution that meets HCPCS Code E0635 requirements and healthcare safety standards.

Warranty and Reliability

The Lumex sit and stand lift comes with a robust warranty package:

Frame and spreader bar: 3-year limited warranty
Actuator: 2-year limited warranty
Batteries: 1-year limited warranty

Lumex Sit and Stand Lift Specifications

Specification	Details
Safe Working Load	500 lbs (226.8 kg)
Floor Clearance	4.3 inches (11 cm)
Spreader Bar Height Range	19.3″ – 74.8″ (49–190 cm)
Base Width Range (Outside)	25.6″ – 39.4″ (65–100 cm)
Overall Length	40.6″ (103 cm)
Product Weight	Approx. 116.8 lbs
Caster Size	4″ locking front, 3″ non-locking rear

Final Thoughts on the Lumex Sit and Stand Lift

For patients needing assistance standing but still able to participate actively, the Lumex sit and stand lift offers a perfect blend of safety, comfort, and caregiver support. Its powered and manual base options accommodate a wide range of user preferences, while advanced features and ergonomic design maximize ease of use. This lift is a smart, effective choice for improving patient mobility and reducing caregiver strain.

PRODUCT SPECIFICATION

Specification	STS500 (Powered Base)	STS500M (Manual Base)
Model Description	Sit-to-Stand Lift with Powered Base	Sit-to-Stand Lift with Manual Base
Stock Code	STS500	STS500M
Floor Clearance	4.3″	4.3″
Spreader Bar Height – Min	36.2″	19.3″
Spreader Bar Height – Max	70″	74.8″
Overall Length	40.6″	40.6″
Base Width (Minimum – Outside)	26″	25.6″
Base Width (Maximum – Outside)	38.6″	39.4″
Safe Working Load (Evenly Distributed)	500 lb (226.8 kg)	500 lb (226.8 kg)
Product Weight	Contact Manufacturer	Contact Manufacturer
Frame Construction	Heavy-Gauge Steel, Powder Coated	Heavy-Gauge Steel, Powder Coated
Casters	4” Locking (Front), 3” Non-Locking (Rear)	Same
Electronics	Premium LCD, Hand Pendant or Control Box	Same
Base Operation	Powered Open/Close + High/Low	Manual Foot Pedal Mechanism
Knee Pad	Adjustable	Adjustable
Foot Platform	Quick-Release, Removable	Quick-Release, Removable
Sling Hook Style	Sling Shoulder Strap Hooks	Sling Shoulder Strap Hooks
Emergency Lowering Feature	Yes – Manual Lowering on Actuator Shaft	Yes – Manual Lowering on Actuator Shaft
Battery Warning	Visual + Audible Indicator	Visual + Audible Indicator
Power Source	24V DC Motor	24V DC Motor
HCPCS Code	E0635 Compliant	E0635 Compliant

Warranty Information

Component	Warranty Coverage
Frame & Spreader Bar	3-Year Limited Warranty
Actuator	2-Year Limited Warranty
Batteries	1-Year Limited Warranty
